Long Rod Cantilever Composite Insulator – Baoding Jikai Power Equipment Co., Ltd.

PRODUCT PARAMETERS

Payment Type: L/C, T/T
Transportation: Ocean, Land, Air, Express
Location: China
Product Type: Long Rod Cantilever Composite Insulator
Application: Railway overhead contact systems, railway electrification projects, cantilever assemblies and high-speed railway power supply systems
Rated Voltage: 27.5kV
Applicable Railway Speed: 160 km/h and below, 200–250 km/h, 300–350 km/h
Bending Load: 8kN, 12kN, 16kN, 20kN
Tensile Load: 80kN, 100kN, 120kN, 140kN
Creepage Distance: ≥1400 mm or ≥1600 mm
Material: HTV Silicone Rubber, Hot-dip Galvanized Steel Fittings, ECR Fiberglass Core Rod
Available Series: FQB27.5 and FQBS27.5

Description

FAQs

Request A Quote

Description

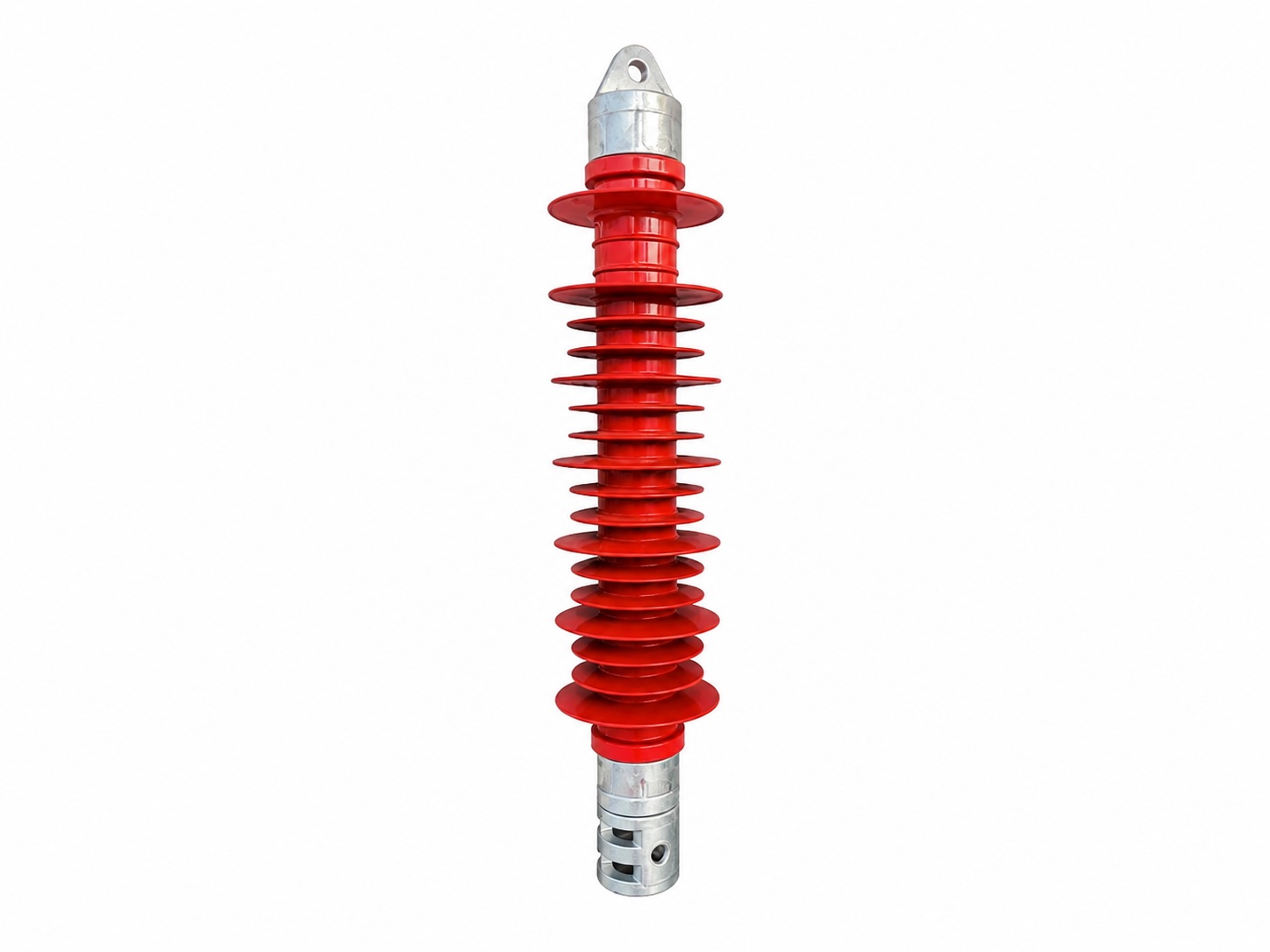

Long rod cantilever composite insulator(160km/h and below)
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/8-1400	27.5	8	7.2	80	72	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤8％H	≤3％H
2	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5		≤7％H
3	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
5	FQB27.5/8-1600	27.5	8	7.2	80	72	≥1600	800		≥520	310	190	150	45.7	36.0		≤8％H
6	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0		≤7％H
7	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
8	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
9	FQBS27.5/8-1400	27.5	8	7.2	80	72	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤8％H
10	FQBS27.5/12-1400	27.5	12	10.8	100	90	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤7％H
11	FQBS27.5/16-1400	27.5	16	14.4	120	108	≥1400/145	890		≥490	290	175	140	40.0	31.5
12	FQBS27.5/20-1400	27.5	20	18	140	126	≥1400/145	890		≥490	290	175	140	40.0	31.5
13	FQBS27.5/8-1600	27.5	8	7.2	80	72	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤8％H
14	FQBS27.5/12-1600	27.5	12	10.8	100	90	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤7％H
15	FQBS27.5/16-1600	27.5	16	14.4	120	108	≥1600/145	890		≥520	310	190	150	45.7	36.0
16	FQBS27.5/20-1600	27.5	20	18	140	126	≥1600/145	890		≥520	310	190	150	45.7	36.0
17	FQB27.5/8-1400(E)	27.5	8	7.2	80	72	≥1400	800		≥490	290	175	140	40.0	31.5		≤8％H
18	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5		≤7％H
19	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
20	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
21	FQB27.5/8-1600(E)	27.5	8	7.2	80	72	≥1600	800		≥520	310	190	150	45.7	36.0		≤8％H
22	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0		≤7％H
23	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
24	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
25	FQBS27.5/8-1400(E)	27.5	8	7.2	80	72	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤8％H
26	FQBS27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤7％H
27	FQBS27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400/145	890		≥490	290	175	140	40.0	31.5
28	FQBS27.5/20-1400(E)	27.5	20	18	140	126	≥1400/145	890		≥490	290	175	140	40.0	31.5
29	FQBS27.5/8-1600(E)	27.5	8	7.2	80	72	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤8％H
30	FQBS27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤7％H
31	FQBS27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600/145	890		≥520	310	190	150	45.7	36.0
32	FQBS27.5/20-1600(E)	27.5	20	18	140	126	≥1600/145	890		≥520	310	190	150	45.7	36.0
Long rod cantilever composite insulator(200-250km/h)
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤7％H	≤3％H
2	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
3	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
5	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
6	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
7	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5
8	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
9	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
10	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
11	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
12	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
Long rod cantilever composite insulator（300～350km/h）
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤7％H	≤3％H
2	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
3	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
5	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
6	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
7	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5
8	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
9	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
10	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
11	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
12	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0

Product Feature：

1. Good electrical specification and strong mechanical strength.
2. Excellent anti-pollution behaviour. Pollution flashover voltage of composite insulators is 2-3 times of that of porcelain insulators. So this product is particularly applicable in the polluted area.
3. No cleaning and maintenance is required. The unique hydrophobicity and hydrophobicity transfer of the silicone rubber material makes the composite insulator still has excellent hydrophobicity and high pollution flashover voltage after accumulation of pollution, especially suitable for lines with difficult operation and maintenance.
4. The weight is light. It is just 1/7-1/10 of the porcelain insulators. it is very convenient to transport and install. Therefore, it is particularly applicable to the area where the transportation condition is difficult and faulty line’s fast emergency repair.
5. The shed has favorable waterproof performance and good anti-ageing.
6. Strong resistance to impact and quakeproof performance.

Product Material：

Long rod cantilever composite insulator

keyword:

Classification:

Long rod cantilever composite insulator(160km/h and below)

Send Email:

jikai@jikaielec.com

Products Details

Long rod cantilever composite insulator(160km/h and below)
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/8-1400	27.5	8	7.2	80	72	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤8％H	≤3％H
2	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5		≤7％H
3	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
5	FQB27.5/8-1600	27.5	8	7.2	80	72	≥1600	800		≥520	310	190	150	45.7	36.0		≤8％H
6	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0		≤7％H
7	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
8	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
9	FQBS27.5/8-1400	27.5	8	7.2	80	72	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤8％H
10	FQBS27.5/12-1400	27.5	12	10.8	100	90	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤7％H
11	FQBS27.5/16-1400	27.5	16	14.4	120	108	≥1400/145	890		≥490	290	175	140	40.0	31.5
12	FQBS27.5/20-1400	27.5	20	18	140	126	≥1400/145	890		≥490	290	175	140	40.0	31.5
13	FQBS27.5/8-1600	27.5	8	7.2	80	72	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤8％H
14	FQBS27.5/12-1600	27.5	12	10.8	100	90	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤7％H
15	FQBS27.5/16-1600	27.5	16	14.4	120	108	≥1600/145	890		≥520	310	190	150	45.7	36.0
16	FQBS27.5/20-1600	27.5	20	18	140	126	≥1600/145	890		≥520	310	190	150	45.7	36.0
17	FQB27.5/8-1400(E)	27.5	8	7.2	80	72	≥1400	800		≥490	290	175	140	40.0	31.5		≤8％H
18	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5		≤7％H
19	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
20	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
21	FQB27.5/8-1600(E)	27.5	8	7.2	80	72	≥1600	800		≥520	310	190	150	45.7	36.0		≤8％H
22	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0		≤7％H
23	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
24	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
25	FQBS27.5/8-1400(E)	27.5	8	7.2	80	72	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤8％H
26	FQBS27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400/145	890		≥490	290	175	140	40.0	31.5		≤7％H
27	FQBS27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400/145	890		≥490	290	175	140	40.0	31.5
28	FQBS27.5/20-1400(E)	27.5	20	18	140	126	≥1400/145	890		≥490	290	175	140	40.0	31.5
29	FQBS27.5/8-1600(E)	27.5	8	7.2	80	72	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤8％H
30	FQBS27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600/145	890		≥520	310	190	150	45.7	36.0		≤7％H
31	FQBS27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600/145	890		≥520	310	190	150	45.7	36.0
32	FQBS27.5/20-1600(E)	27.5	20	18	140	126	≥1600/145	890		≥520	310	190	150	45.7	36.0
Long rod cantilever composite insulator(200-250km/h)
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤7％H	≤3％H
2	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
3	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
5	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
6	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
7	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5
8	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
9	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
10	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
11	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
12	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
Long rod cantilever composite insulator（300～350km/h）
Serial No.	Item No.	Rating Voltage	Minimum mechanical damage load kN				Creepage distance(mm)	Main dimensions			Full lightning impulse withstand voltage(kV)	1min Power frequency wet withstand voltage(kV)		Manual power frequency withstand voltage≥kV		Sliding load kN	70% load offset mm	The remaining offset after recovery is mm
			Minimum mechanical damage load kN					Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		1min Power frequency wet withstand voltage(kV)		Ash Density 1mg/cm2	Ash Density 2mg/cm2
			bend	Low temperature bending	stretch	Low temperature drawing		Structure Height(mm)	Shed skirt Diameter D(mm)	Minimum arc distance(mm)		Dry	Wet	Salt density 0.1mg/cm2	Salt density 0.35mg/cm2
1	FQB27.5/12-1400	27.5	12	10.8	100	90	≥1400	800	≤230	≥490	290	175	140	40.0	31.5	≥20	≤7％H	≤3％H
2	FQB27.5/16-1400	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
3	FQB27.5/20-1400	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
4	FQB27.5/12-1600	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
5	FQB27.5/16-1600	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
6	FQB27.5/20-1600	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0
7	FQB27.5/12-1400(E)	27.5	12	10.8	100	90	≥1400	800		≥490	290	175	140	40.0	31.5
8	FQB27.5/16-1400(E)	27.5	16	14.4	120	108	≥1400	800		≥490	290	175	140	40.0	31.5
9	FQB27.5/20-1400(E)	27.5	20	18	140	126	≥1400	800		≥490	290	175	140	40.0	31.5
10	FQB27.5/12-1600(E)	27.5	12	10.8	100	90	≥1600	800		≥520	310	190	150	45.7	36.0
11	FQB27.5/16-1600(E)	27.5	16	14.4	120	108	≥1600	800		≥520	310	190	150	45.7	36.0
12	FQB27.5/20-1600(E)	27.5	20	18	140	126	≥1600	800		≥520	310	190	150	45.7	36.0

Product Feature：

Product Material：

1. Shed and housing：HTV silicone rubber which hydrophobicity can reach to HC1 level
2.Hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm
3. ECR rod as the core which is high acid resistant. 7200Hr testing passed

FAQs

What types of products can we offer?

We provide a wide range of power transmission and distribution equipment, including transformers, composite insulators, surge arresters, switchgear, distribution boxes, meter boxes and smart metering products. Our products are widely used in power grids, substations, railway electrification, industrial facilities and infrastructure projects.

Can your products be customized?

Yes. We can provide customized solutions according to voltage level, technical parameters, installation environment, application conditions and project requirements. Customers can send drawings, specifications or project details for technical communication.

What certifications does Jikai have?

Jikai holds key certifications including ISO 9001, ISO 14001, ISO 45001, UL, CE and Iraq MOE supplier registration. These certifications support our quality management system, product compliance and international project cooperation.

How can I get a quotation?

You can contact us by email or submit an inquiry through the website. To help us provide an accurate quotation, please include the product type, voltage level, quantity, technical requirements, destination country and any related drawings or specifications.

Do you provide after-sales support?

Yes. We provide professional technical support for product selection, project communication, installation guidance and after-sales service. Our team helps customers ensure safe, stable and reliable operation of power equipment in different application scenarios.

PRODUCT PARAMETERS

Description

FAQs

REQUEST A QUOTE

RELATED PRODUCTS

Cross Arm Composite Insulators

Long Rod Suspension Tension/Stay Composite Insulator

Insulators for Composite Phase Spacer for A.C. Overhead Lines

A.C. Suspension Composite Insulators

Long Rod Post Type Composite Insulator for FecH (200～250km/h)

Anti Windage yaw Composite Insulators
