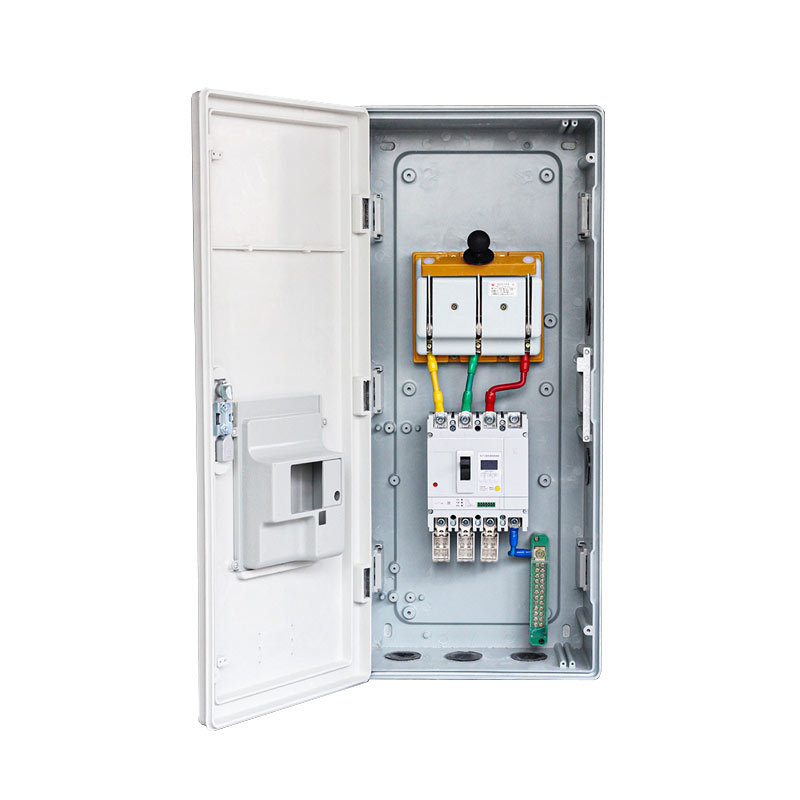

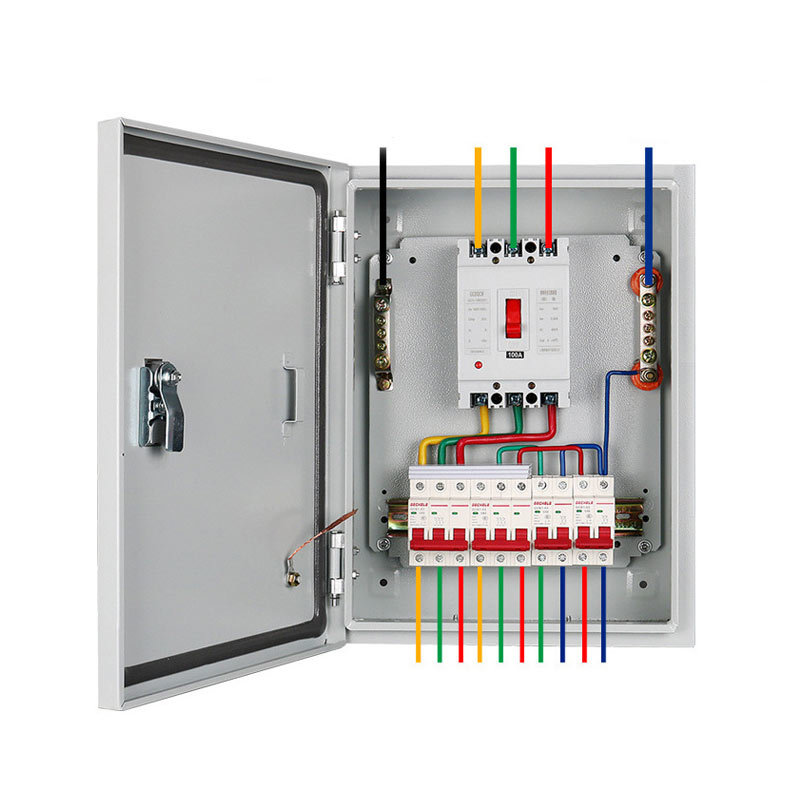

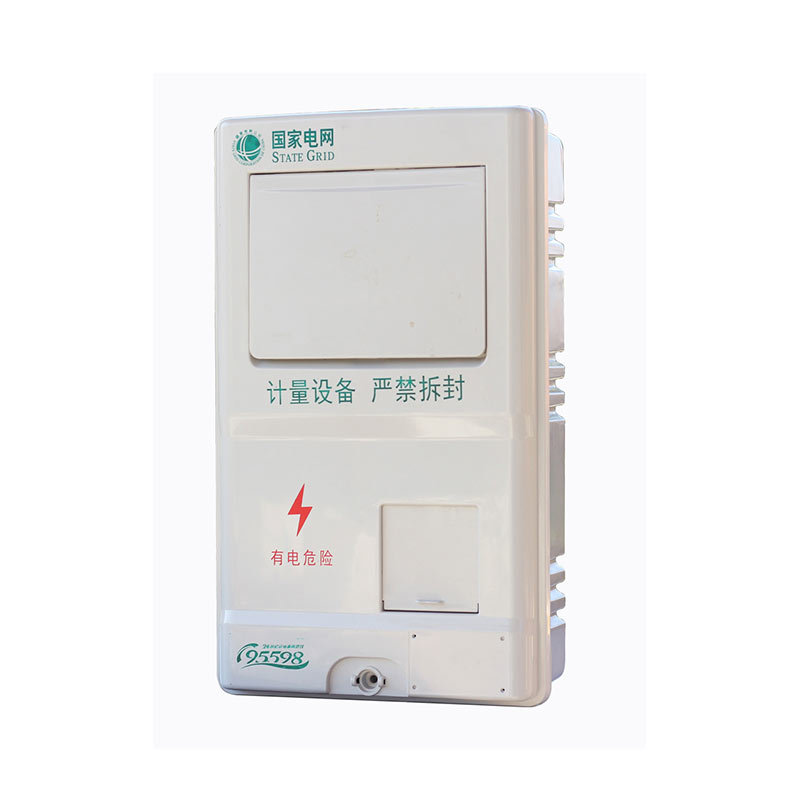

Electric Meter Box

PRODUCT PARAMETERS

Product Type: Electric Meter Box
Models: PXD2 / PXS2 / SXD2 / SXS2 / SXD1 / SXS1 / SXS3
Voltage: 220V / 230V / 380V / 400V
Insulation Voltage: 500V
Phase: Single Phase / Three Phase
Protection Grade: IP34D / Operating Side IP20C
Operating Temperature: -25℃ to +40℃
Material: PC
Main Features: Anti-Theft, UV Resistant and Impact Resistant

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

The electric meter box is designed for electrical metering and distribution applications. According to the supplied product information, the series includes PXD2, PXS2, SXD2, SXS2, SXD1, SXS1 and SXS3 models, with both single-phase and three-phase configurations available.

The product uses selected PC material with good electrical insulation and environmental resistance. Available operating voltages include 220V, 230V, 380V and 400V, with a rated insulation voltage of 500V.

Product Features

Anti-Theft Design: The enclosure structure helps improve the safety of electricity metering equipment.
PC Material: Provides good electrical insulation and transparency performance.
UV Resistance: Suitable for environments exposed to ultraviolet radiation.
Weather Resistance: Resistant to aging, acid rain and salt spray.
Temperature Resistance: Designed for operating temperatures from -25℃ to +40℃.
Impact Resistance: The PC enclosure provides good resistance to external impact.
Ventilation: The structure provides ventilation and heat dissipation.

Main Technical Data

Model	Rated Current	Voltage	Rated Insulation Voltage	Phase	Protection Grade	Operating Temperature	Dimensions
PXD2	250-10A	400V / 380V	500V	Single Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	4: 748×800×180mm 6: 890×800×180mm 9: 910×1000×180mm
PXS2	250-10A	400V / 380V	500V	Three Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	2: 780×550×140mm
SXD2	250-10A	400V / 380V	500V	Single Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	4: 748×800×180mm 6: 890×800×180mm 9: 910×1000×180mm
SXS2	250-10A	400V / 380V	500V	Three Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	2: 780×550×140mm
SXD1	80-10A	230V / 220V	500V	Single Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	270×450×120mm
SXS1	100-10A	400V / 380V	500V	Three Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	350×550×140mm
SXS3	250-10A	400V / 380V	500V	Three Phase	IP34D / Operating Side IP20C	-25℃ to +40℃	700×1000×180mm

Note: Rated current values above are retained according to the supplied product information.

FAQs

What types of products can we offer?

We provide a wide range of power transmission and distribution equipment, including transformers, composite insulators, surge arresters, switchgear, distribution boxes, meter boxes and smart metering products. Our products are widely used in power grids, substations, railway electrification, industrial facilities and infrastructure projects.

Can your products be customized?

Yes. We can provide customized solutions according to voltage level, technical parameters, installation environment, application conditions and project requirements. Customers can send drawings, specifications or project details for technical communication.

What certifications does Jikai have?

Jikai holds key certifications including ISO 9001, ISO 14001, ISO 45001, UL, CE and Iraq MOE supplier registration. These certifications support our quality management system, product compliance and international project cooperation.

How can I get a quotation?

You can contact us by email or submit an inquiry through the website. To help us provide an accurate quotation, please include the product type, voltage level, quantity, technical requirements, destination country and any related drawings or specifications.

Do you provide after-sales support?

Yes. We provide professional technical support for product selection, project communication, installation guidance and after-sales service. Our team helps customers ensure safe, stable and reliable operation of power equipment in different application scenarios.
