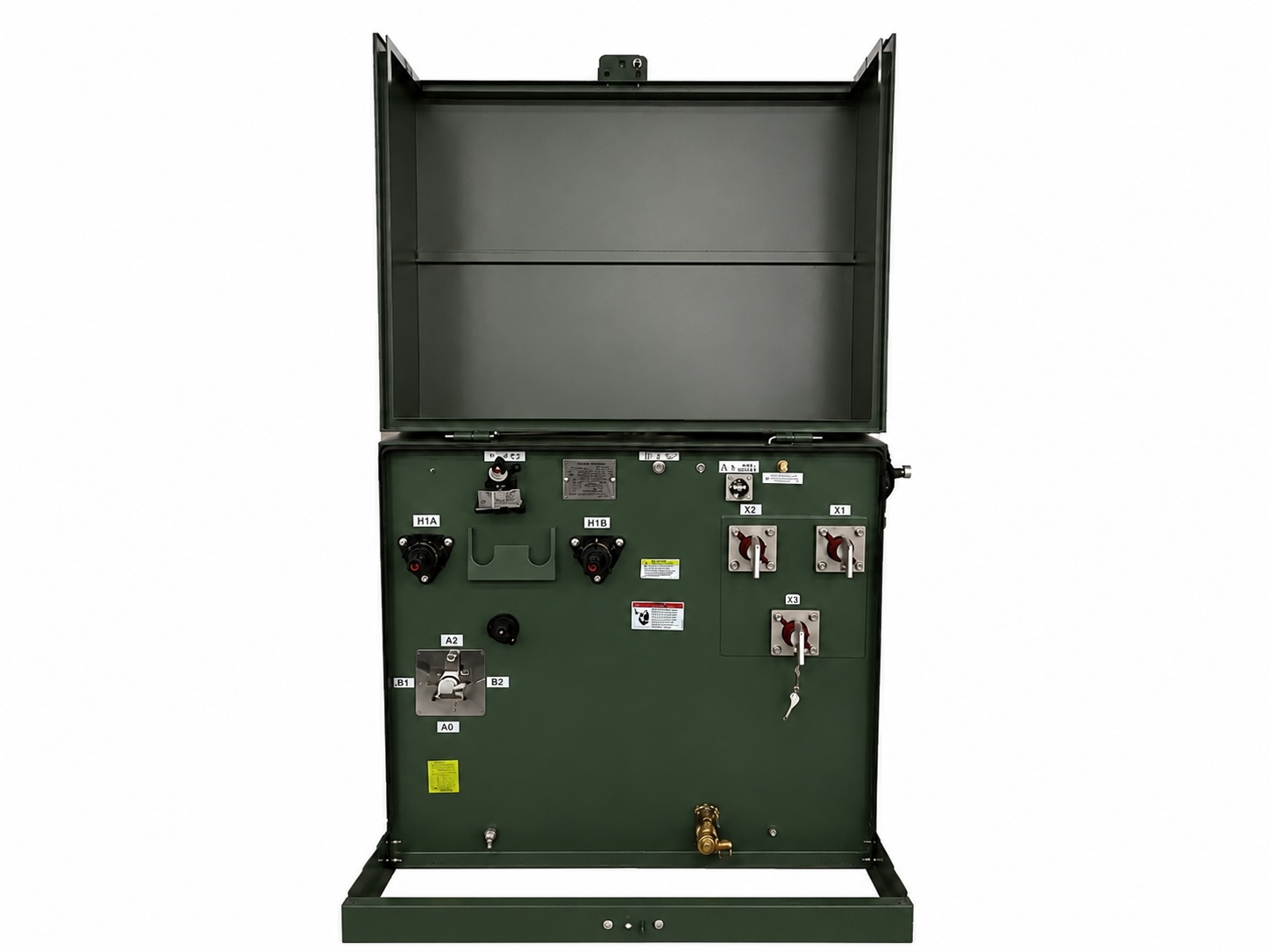

Single-Phase Pad-Mounted Transformer
PRODUCT PARAMETERS
Description
CERTIFIED QUALITY：[ UL Listed ] [ ANSI C57.12.38 ] [ IEEE C57.12.00 ] [ DOE 2023 Efficiency ]
Standard Features & Advantages
Uncompromised Safety：Dead-front design ensures maximum public safety. Fully compliant with ANSI/IEEE C57.12.38 compartmental requirements.
Rapid Deployment：Industry-leading 60-day lead time to keep your residential development and utility projects on schedule.
DOE 2023 Ready：Exceeding U.S. Department of Energy efficiency requirements for immediate deployment across all 50 states.
Technical Specifications (YB Series)
| Parameter | Specification Details |
| KVA Ratings | 10, 15, 25, 37.5, 50, 75, 100, 167, 250 kVA |
| Voltage Ratings | HV: 2400V – 34500V (60kV – 150kV BIL)LV: 120/240V, 240/480V, 120V, 277V |
| Voltage Taps | 4 × 2.5% Full Capacity Taps |
| Impedance | 1.5% – 2.5% (Standard IEEE tolerance) |
| Insulation Class | 65°C Temperature Rise (ONAN) |
| Standard Fittings | Auto Pressure Relief Valve, Fluid Level Plug, Drain Plug with Sampler, 1″ Fill Plug, Ground Pads, Laser Nameplate |
| Tank Protection | Munsell 7GY 3.29/1.5 Dark Green Powder Coat (IEEE C57.12.28) |
| Compliance | ANSI C57.12.38, IEEE C57.12.00, DOE 2023, UL Listed |
Manufacturing Excellence Since 1985
Jikai Power Group specializes in engineering distribution solutions that meet the rigorous demands of North American residential and commercial grids. Our facility is equipped with high-precision testing systems ensuring every unit meets the highest international standards.
• UL Listed Certification for US & Canada Markets
• State-of-the-art Automated Winding Machines
• Full compliance with ANSI / IEEE / CSA Standards
• Guaranteed Capacity & 60-Day Lead Time
