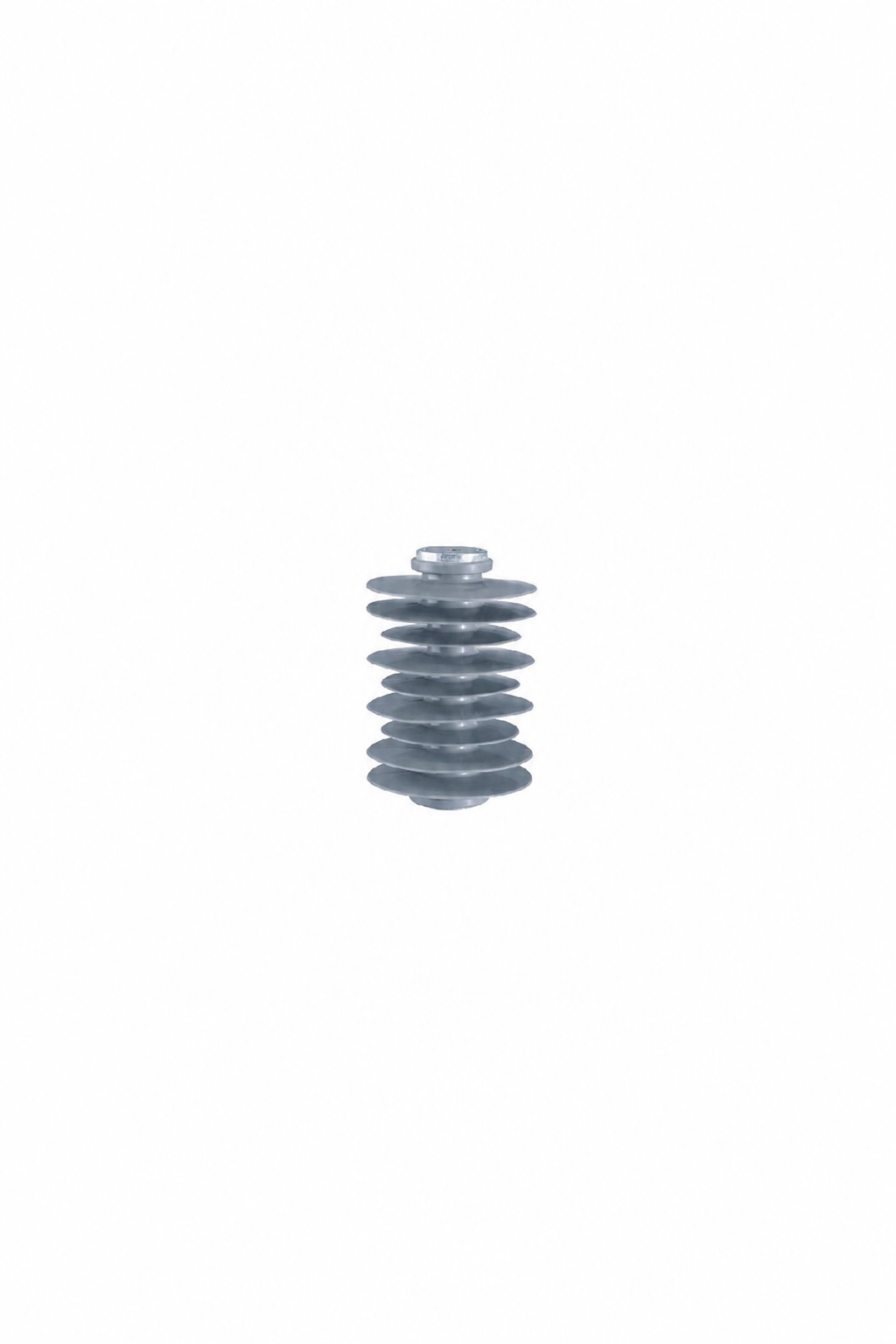

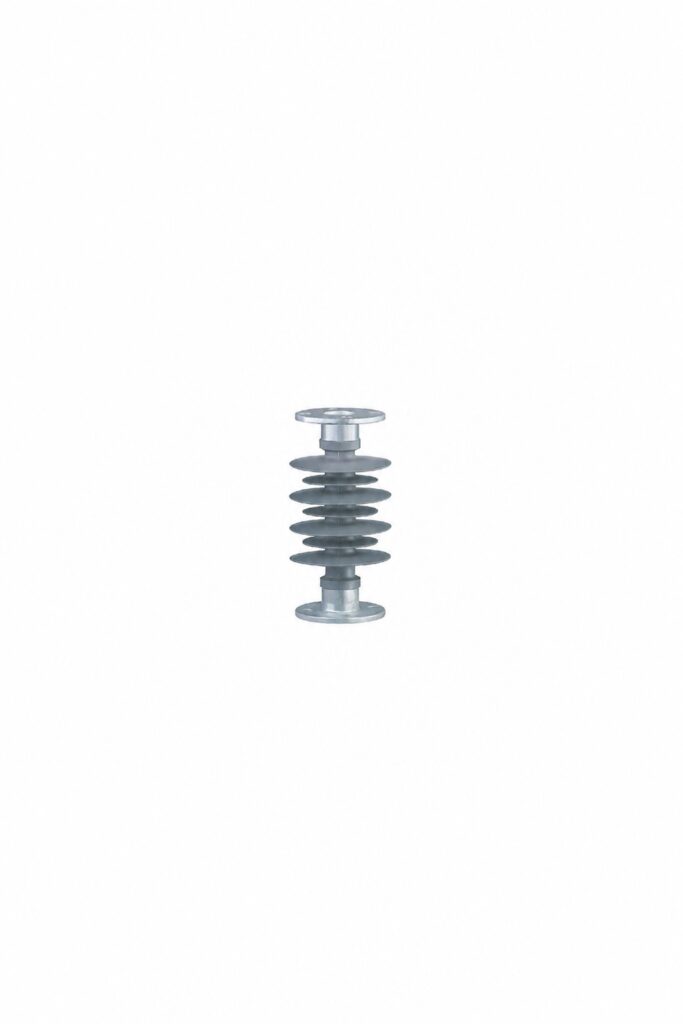

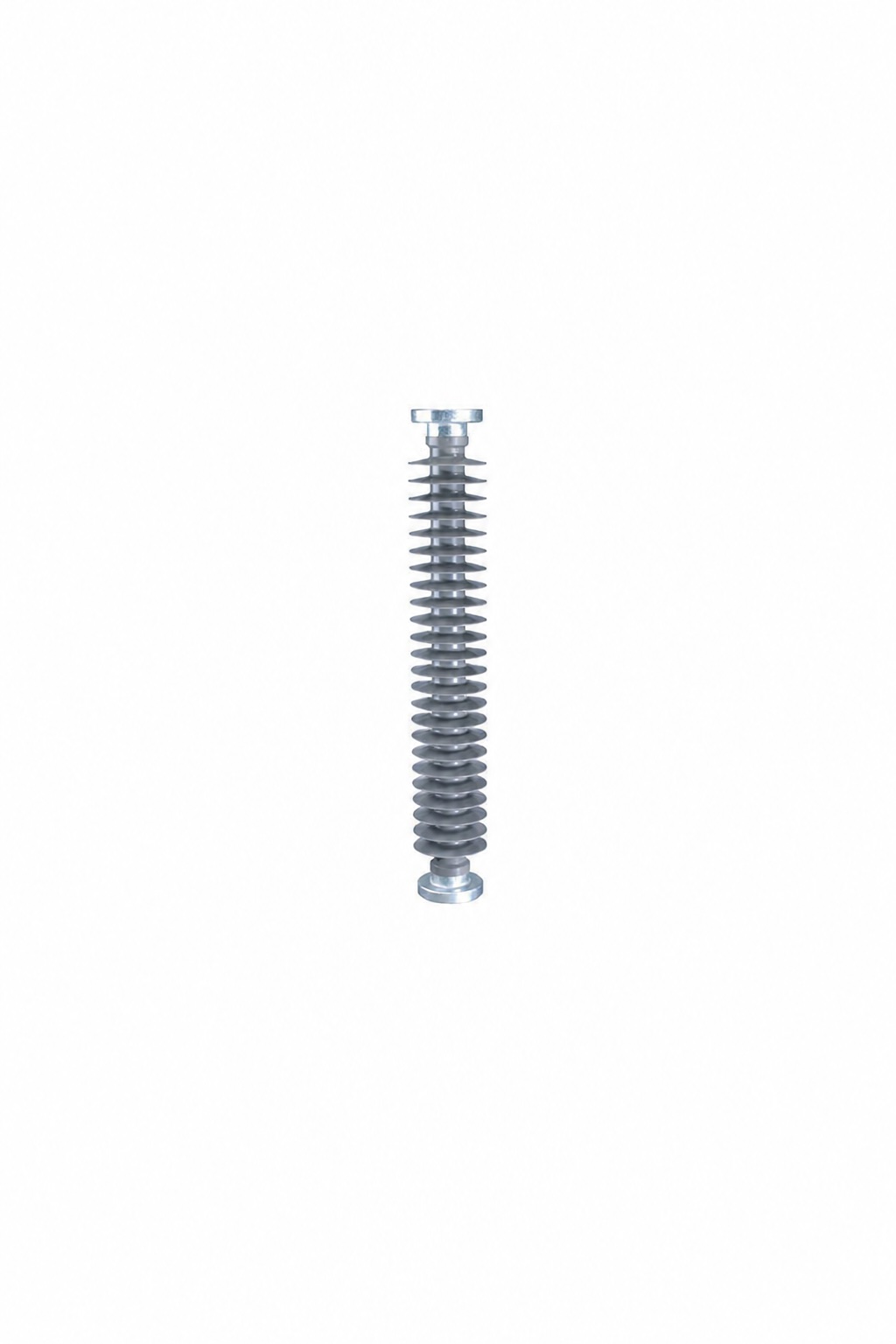

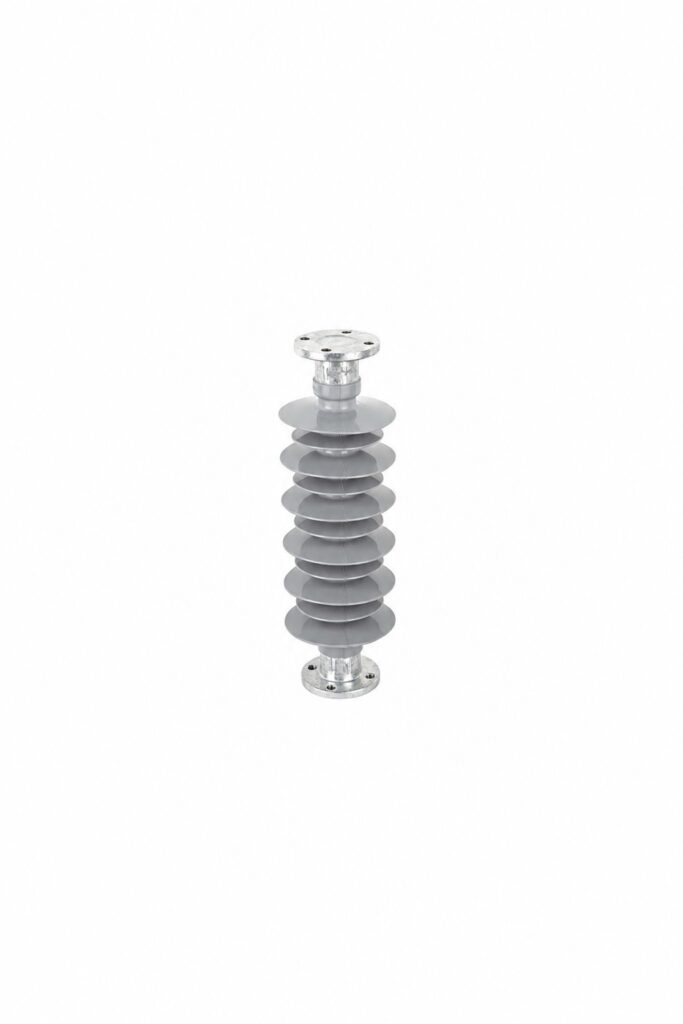

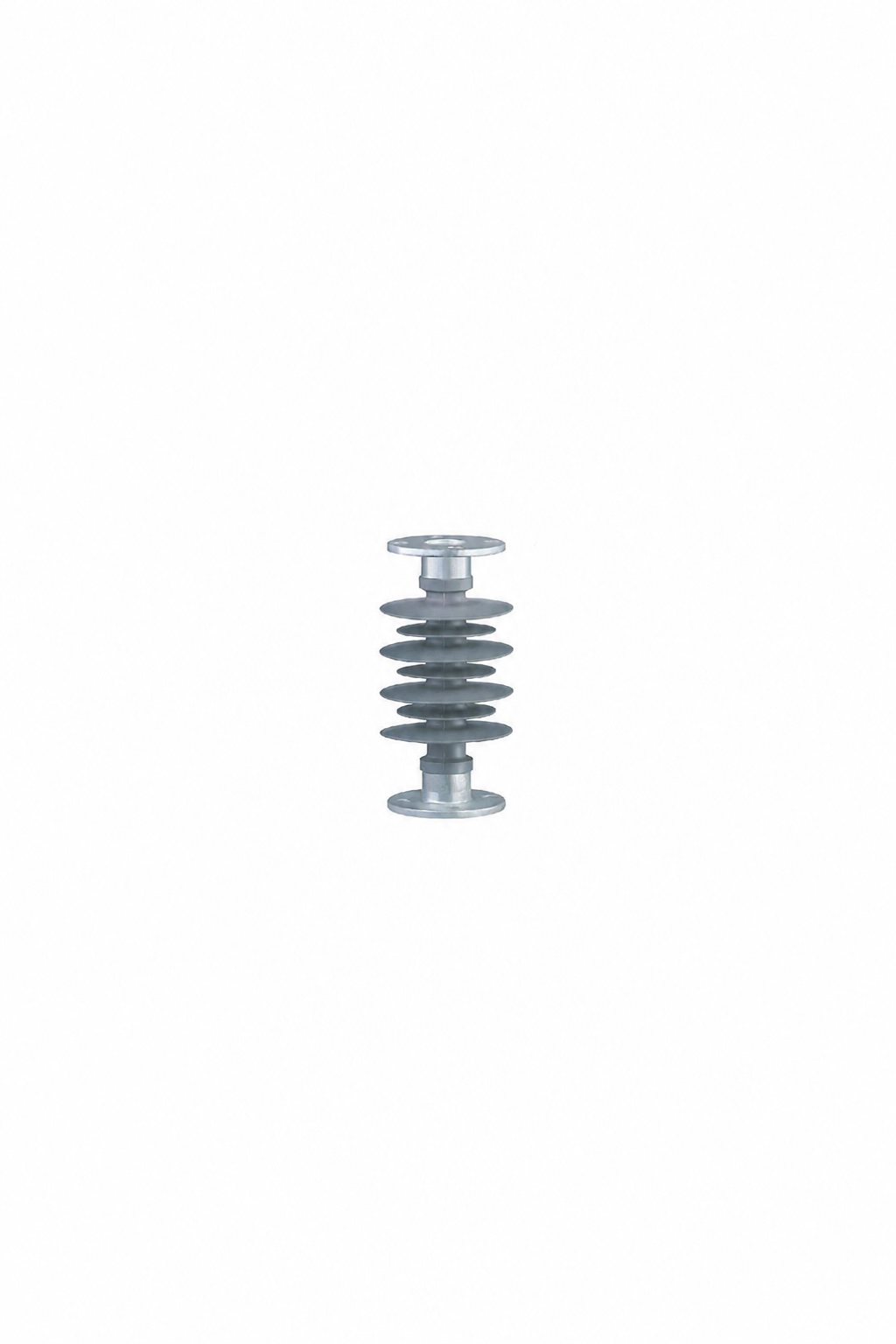

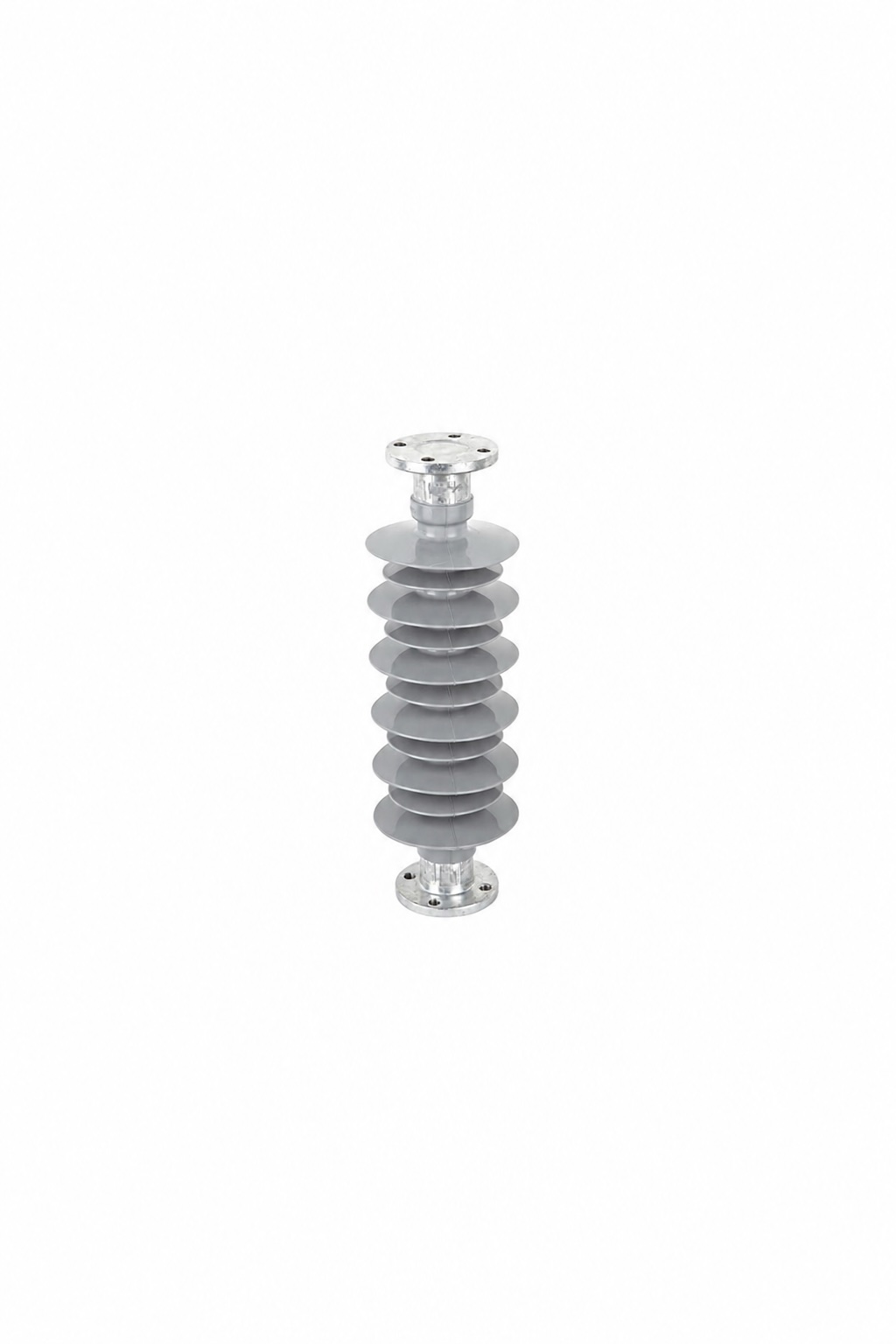

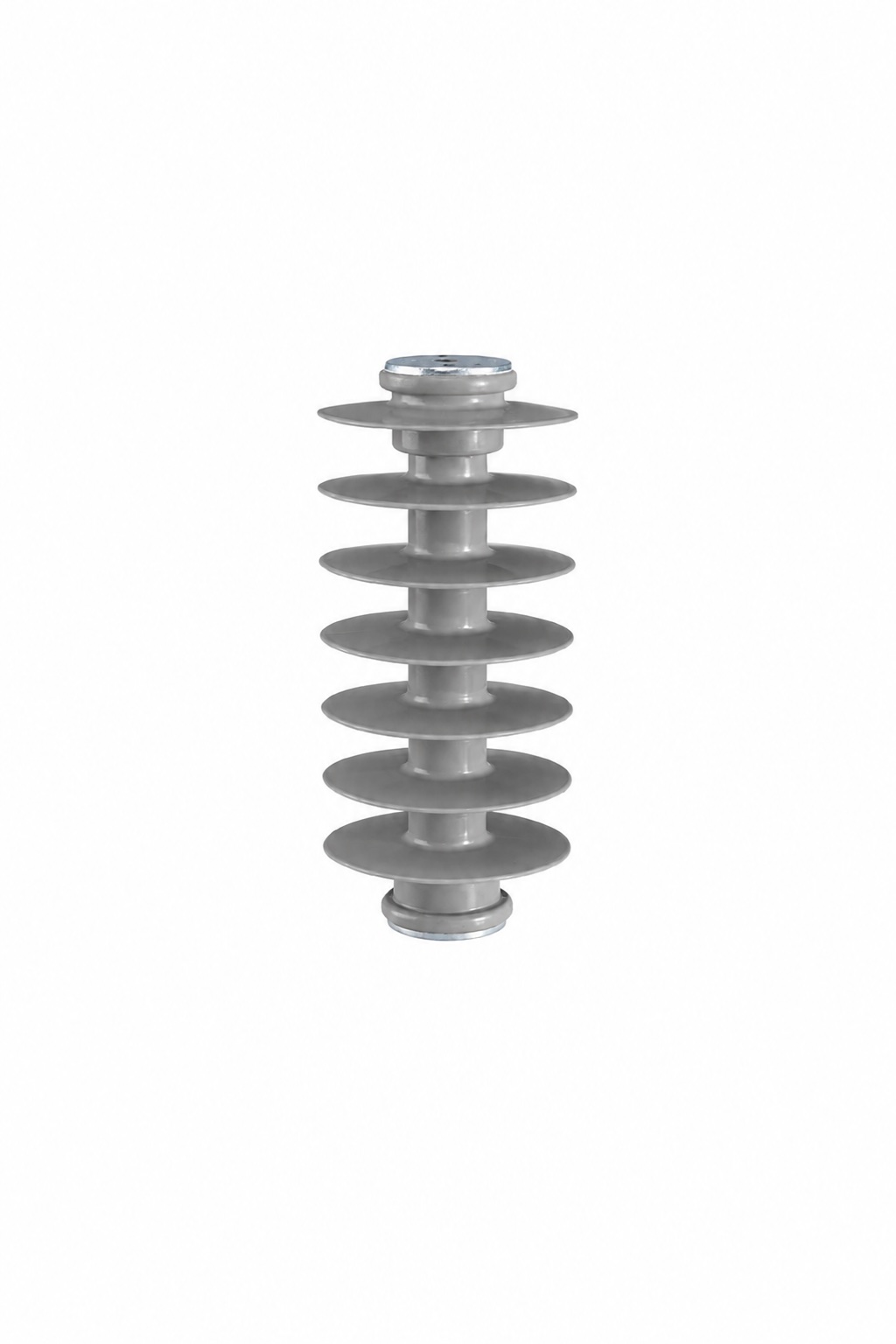

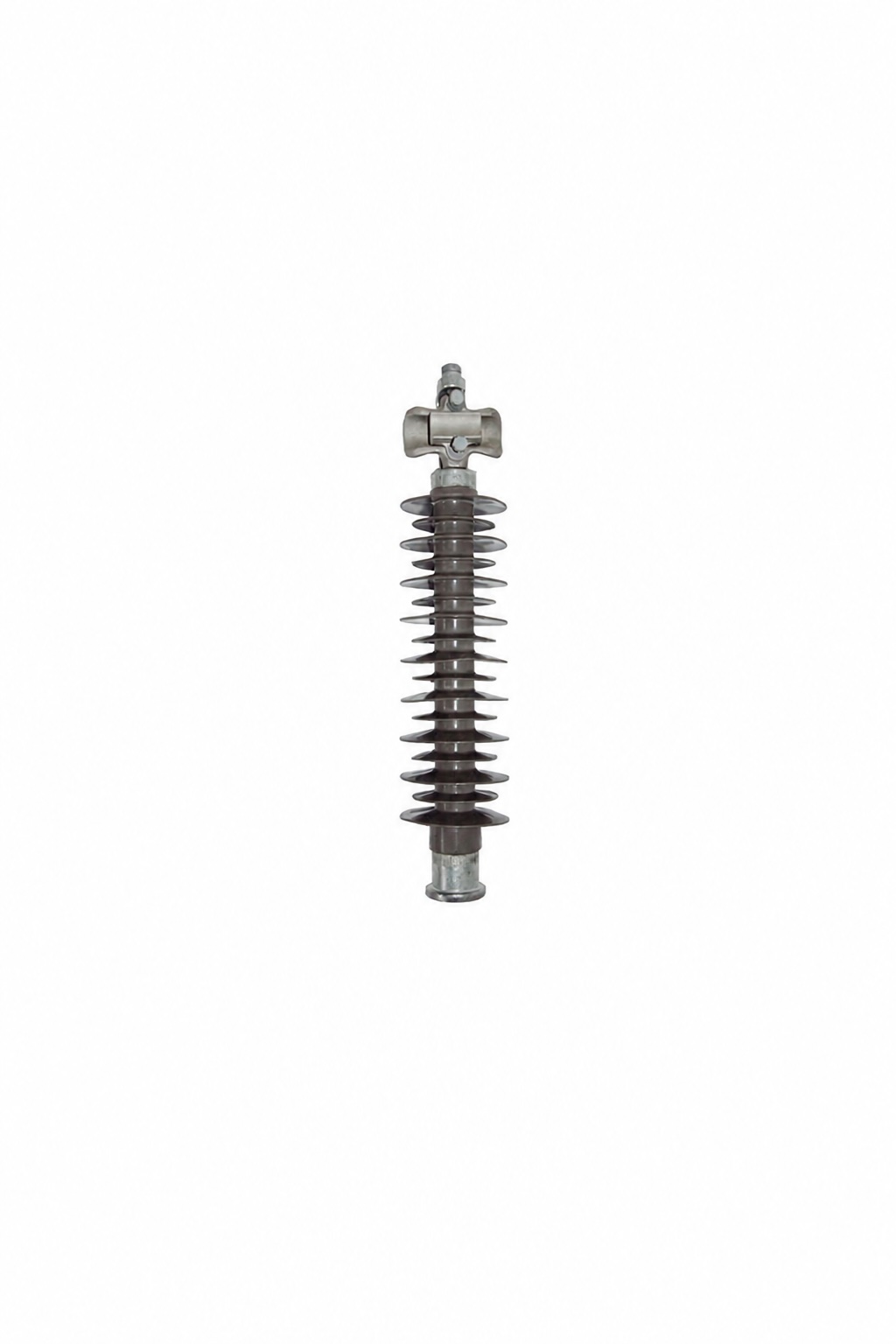

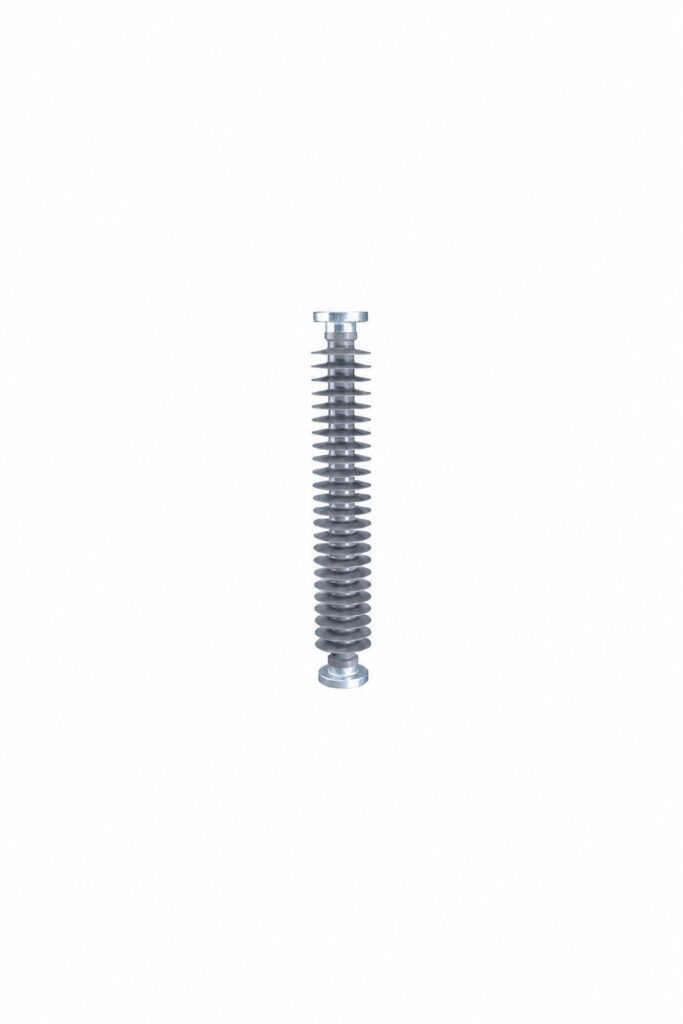

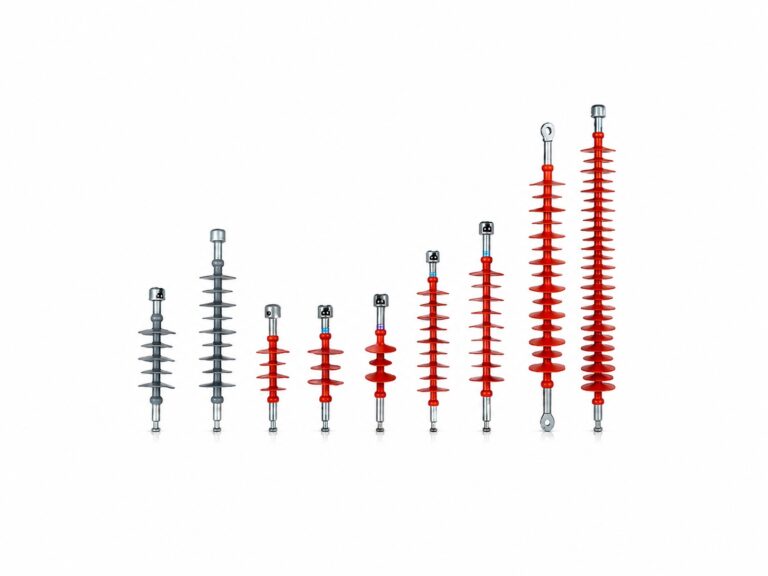

Station Post Composite Insulator

PRODUCT PARAMETERS

  • Payment Type: L/C, T/T
  • Transportation: Ocean, Land, Air, Express
  • Location: China
  • Main Products: Station Post Composite Insulators, Composite Insulators, Polymer Insulators, Electrical Insulators
  • Application: Electrical substations, power distribution equipment, utility transmission systems and outdoor electrical installations
  • Rated Voltage: 12kV – 252kV
  • Material: HTV Silicone Rubber, Hot-dip Galvanized Steel Fittings, ECR Fiberglass Core Rod
  • Customization: Rated Voltage, Creepage Distance, Mechanical Load, Mounting Dimensions and Fitting Configuration can be customized according to project requirements
Description
FAQs
Request A Quote

Description

Station Post Composite Insulator
Model No.Rating Voltage（kV)Nominal voltageRating MechanicaCantilever Load (kN)Structure Height（mm)Insulatiing Distance (mm)Minimum nominal creepage distance(mm)Mounting dimensions of upper attachments(mm)Mounting dimensions of bottom attachments (mm)Power Frequency wet withstand voltage kV（effective value)Full Lightning impulse withstand voltage(peak value)
bendtwistHole center circle diameterAperture（mm)Hole NumberHole center circle diameterAperture（mm)Hole Number
FZS-12/412104/23013032076M124761444090
FZS-24/424204/35024062076M1247614460130
FZS-40.5/440.5354145035080076M1247614495230
FZS-40.5/640.53561.5450350105076M12414014495230
FZS-40.5/840.53581.5500400105014014414014495230
FZS-72.5/872.566827506201600140144140144185410
FZS-126/10126110103120010503150140144225144230550
FZS-252/425222042230021006300140M1642251843951050

Product Feature:

1. Good electrical specification and strong mechanical strength.
2. Excellent anti-pollution behaviour. Pollution flashover voltage of composite insulators is 2-3 times of that of porcelain insulators. So this product is particularly applicable in the polluted area.
3. No cleaning and maintenance is required. The unique hydrophobicity and hydrophobicity transfer of the silicone rubber material makes the composite insulator still has excellent hydrophobicity and high pollution flashover voltage after accumulation of pollution, especially suitable for lines with difficult operation and maintenance.
4. The weight is light. It is just 1/7-1/10 of the porcelain insulators. it is very convenient to transport and install. Therefore, it is particularly applicable to the area where the transportation condition is difficult and faulty line’s fast emergency repair.
5. The shed has favorable waterproof performance and good anti-ageing.
6. Strong resistance to impact and quakeproof performance.

Product Material:

1. Shed and housing：HTV silicone rubber which hydrophobicity can reach to HC1 level
2.Hot dip Galvanizing steel fitting ,the thickness of the zinc more than 100 μm
3. ECR rod as the core which is high acid resistant. 7200Hr testing passed
