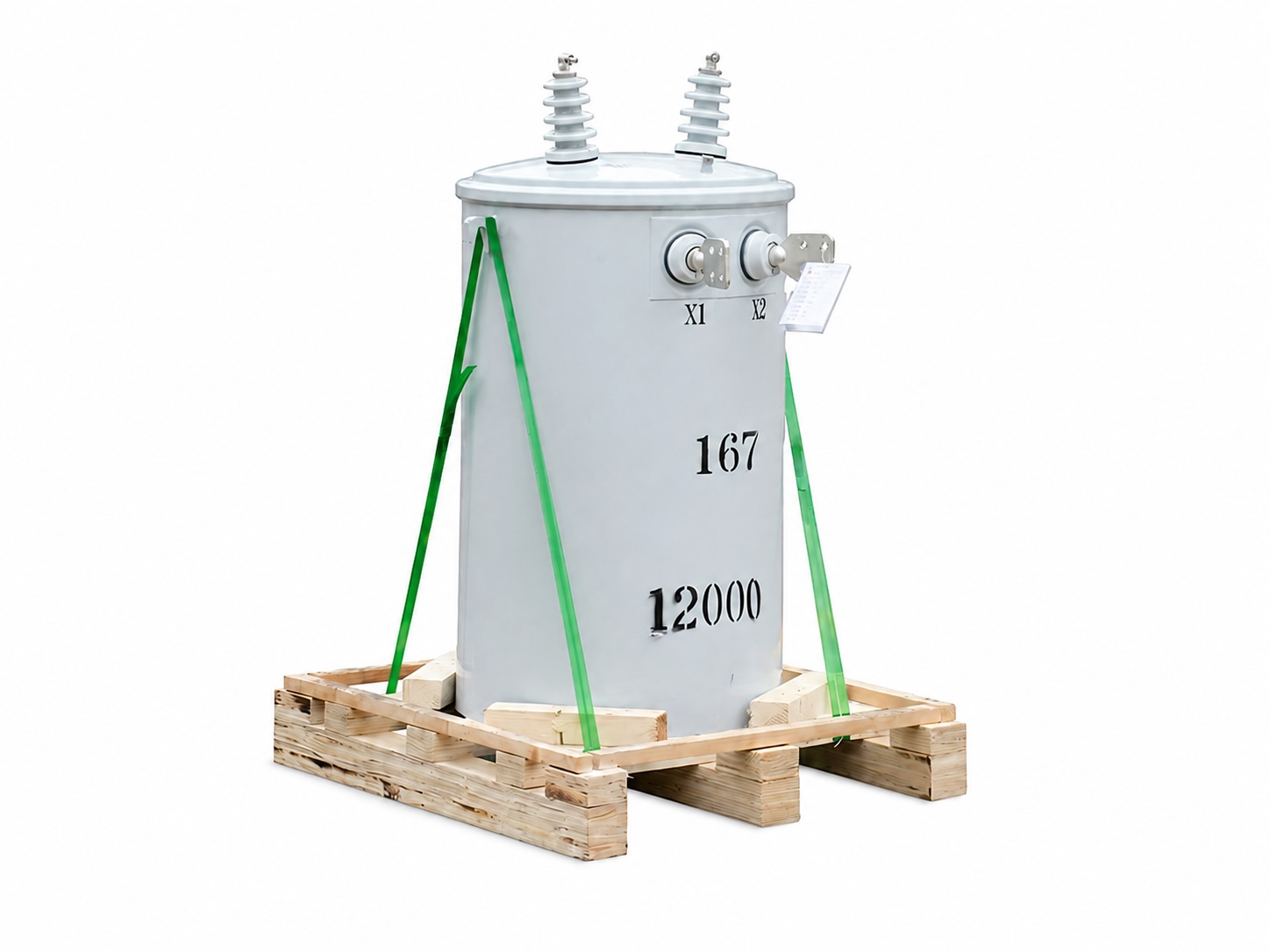

Single Phase Pole-Mounted Transformer
PRODUCT PARAMETERS
Description
CERTIFIED QUALITY：[ UL Listed ] [ IEEE C57.12.20 ] [ ANSI C57.12.00 ] [ DOE 2023 Efficiency ]
Why Choose Jikai Transformers?
Utility-Grade Durability:Designed for 30+ years of service in harsh outdoor environments with corrosion-resistant coatings.
DOE 2023 Efficient:Advanced core design using high-quality silicon steel to exceed the latest energy efficiency standards.
Reliable Supply Chain:Guaranteed 60-day lead time to keep your infrastructure projects on schedule.
Technical Specifications
| Parameter | Specification Details |
| Rating (kVA) | 10, 15, 25, 37.5, 50, 75, 100, 167 kVA |
| High Voltage | 4,160 GrdY/2,400 to 34,500 GrdY/19,920 |
| HV BIL | 60 kV to 150 kV |
| Low Voltage | 120/240, 240/480, 277 V |
| Core Material | Cold-rolled grain-oriented (CRGO) Silicon Steel |
| HV Bushings | Porcelain Cover-mounted |
| LV Bushings | Tank Wall-Mounted Porcelain or Polymer |
| Protection | Automatic Pressure Relief Valve Included |
Manufacturing Excellence Since 1985
Baoding Jikai Power Equipment is a cornerstone of global electrical infrastructure. As a Tier-1 supplier to the State Grid, we combine decades of manufacturing experience with cutting-edge R&D to deliver world-class transformers.
• 150+ National Invention Patents
• Exported to 50+ Countries Worldwide
• ISO 9001, 14001, and 45001 Certified Facilities
• Comprehensive UL & IEEE Testing Documentation
FAQs
What types of products can we offer?
We provide a wide range of power transmission and distribution equipment, including transformers, composite insulators, surge arresters, switchgear, distribution boxes, meter boxes and smart metering products. Our products are widely used in power grids, substations, railway electrification, industrial facilities and infrastructure projects.
Can your products be customized?
Yes. We can provide customized solutions according to voltage level, technical parameters, installation environment, application conditions and project requirements. Customers can send drawings, specifications or project details for technical communication.
What certifications does Jikai have?
Jikai holds key certifications including ISO 9001, ISO 14001, ISO 45001, UL, CE and Iraq MOE supplier registration. These certifications support our quality management system, product compliance and international project cooperation.
How can I get a quotation?
You can contact us by email or submit an inquiry through the website. To help us provide an accurate quotation, please include the product type, voltage level, quantity, technical requirements, destination country and any related drawings or specifications.
Do you provide after-sales support?
Yes. We provide professional technical support for product selection, project communication, installation guidance and after-sales service. Our team helps customers ensure safe, stable and reliable operation of power equipment in different application scenarios.
