Three-dimensional Oil-immersedTransformer

PRODUCT PARAMETERS

  • Product Type: Three-Dimensional Oil-Immersed Transformer
  • Series: S11-M.RL / S13-M.RL
  • Rated Capacity: 30–1600kVA
  • Primary Voltage: 6–11kV
  • Secondary Voltage: 0.4kV
  • Tap Range: ±5% or ±2 × 2.5%
  • Connection: Dyn11 / Yyn0
  • Core Structure: Three-Dimensional Wound Core
  • Winding: Circular Copper Winding
  • Oil Tank: Fully Sealed Structure
  • Main Features: Low Loss, Low Noise and Strong Short-Circuit Resistance
Description
FAQs
Request A Quote

Description

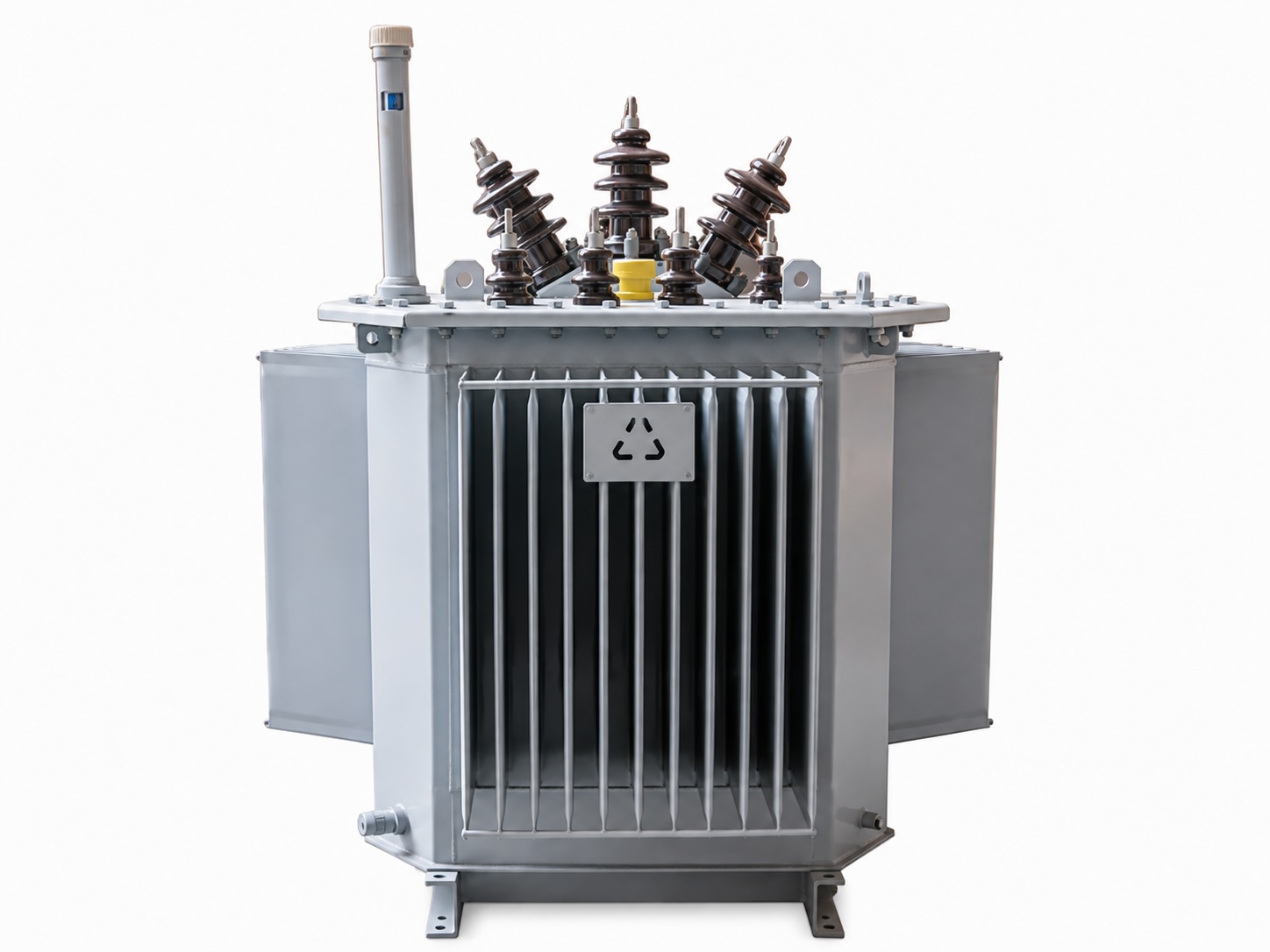

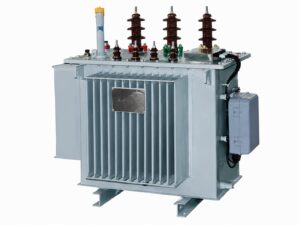

Three-dimensional Oil-immersedTransformer

Three-dimensional Oil-immersedTransformer adopts a three-dimensional wound core structure with equal and shortened three-phase magnetic circuit paths. This balanced magnetic circuit design helps reduce no-load loss, no-load current and operating noise.

The transformer is available in S11-M.RL and S13-M.RL series, with rated capacities from 30kVA to 1600kVA. Rated primary voltage options include 6kV, 6.3kV, 10kV, 10.5kV and 11kV, while the rated secondary voltage is 0.4kV.

Product Structure

Coil

The winding is manufactured from high-quality enameled round wire and flat copper wire. The circular winding structure provides consistent mechanical force distribution and improved structural strength.

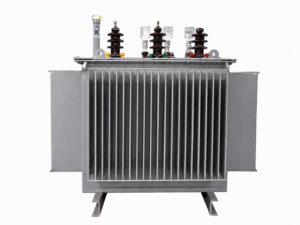

Oil Tank

The transformer adopts a fully sealed oil tank structure without an external oil conservator. By isolating the transformer oil from the surrounding air, the design helps reduce moisture ingress and slow the aging of internal insulation materials.

After rust-prevention treatment, the oil tank surface is finished with a plastic-spraying process to improve corrosion resistance and provide a clean external appearance.

Product Features

  • Balanced Magnetic Circuit: The three-phase magnetic circuit paths of the three-dimensional wound core are equal and shortened, helping maintain balanced magnetic performance.
  • Reduced No-Load Loss: The three-dimensional wound core has no joints or local high-flux-density areas. Its magnetic flux direction follows the grain orientation of the core material, supporting lower no-load loss and no-load current.
  • Low Operating Noise: The three individual core frames are closely assembled and solidified into a complete closed-core structure. The continuous magnetic circuit and absence of an air gap help reduce transformer noise.
  • Strong Short-Circuit Resistance: The circular winding section provides consistent force distribution and strong compression resistance under short-circuit electrodynamic forces.
  • Stable Overall Structure: The clamping assembly uses a welded triangular integrated structure to provide high mechanical stability and overall strength.
  • Fully Sealed Design: The sealed oil tank isolates transformer oil from outside air, reducing moisture exposure and supporting stable insulation performance.
  • Corrosion-Resistant Surface: The oil tank is treated for rust prevention and finished with a plastic-sprayed coating.

General Technical Specifications

ParameterSpecification
Product SeriesS11-M.RL, S13-M.RL
Transformer TypeThree-Dimensional Oil-Immersed Transformer
Rated Capacity30–1600kVA
Rated Primary Voltage6kV, 6.3kV, 10kV, 10.5kV or 11kV
High-Voltage Tap Range±5% or ±2 × 2.5%
Rated Secondary Voltage0.4kV
Connection SymbolDyn11 / Yyn0
Short-Circuit Impedance4.0% or 4.5%, depending on rated capacity
Core StructureThree-Dimensional Wound Core
Winding MaterialEnameled Round Wire and Flat Copper Wire
Winding ShapeCircular Structure
Oil Tank StructureFully Sealed Structure
Surface TreatmentRust-Prevention Treatment and Plastic Spraying

S11-M.RL Series Technical Data

Rated CapacityNo-Load LossLoad LossNo-Load CurrentShort-Circuit ImpedanceWeightDimensions (L × W × H)Gauge
30kVA0.10kW0.63 / 0.60kW0.60%4.0%290kg791 × 612 × 996mm380 × 550mm
50kVA0.13kW0.91 / 0.87kW0.48%4.0%370kg926 × 648 × 1034mm380 × 550mm
63kVA0.15kW1.09 / 1.04kW0.46%4.0%430kg1010 × 672 × 1064mm380 × 550mm
80kVA0.18kW1.31 / 1.25kW0.44%4.0%480kg1027 × 677 × 1094mm380 × 550mm
100kVA0.20kW1.58 / 1.50kW0.42%4.0%505kg899 × 791 × 1114mm380 × 550mm
125kVA0.24kW1.89 / 1.80kW0.40%4.0%560kg1007 × 872 × 1144mm380 × 550mm
160kVA0.28kW2.31 / 2.20kW0.38%4.0%680kg1117 × 967 × 1164mm400 × 660mm
200kVA0.34kW2.73 / 2.60kW0.36%4.0%770kg1145 × 991 × 1215mm400 × 660mm
250kVA0.40kW3.20 / 3.05kW0.34%4.0%970kg1241 × 1075 × 1190mm400 × 660mm
315kVA0.48kW3.83 / 3.65kW0.30%4.0%1035kg1180 × 1020 × 1250mm550 × 820mm
400kVA0.57kW4.52 / 4.30kW0.30%4.0%1210kg1311 × 1136 × 1235mm550 × 820mm
500kVA0.68kW5.41 / 5.15kW0.30%4.0%1510kg1404 × 1216 × 1368mm550 × 820mm
630kVA0.81kW6.20kW0.30%4.5%1820kg1450 × 1255 × 1350mm550 × 820mm
800kVA0.98kW7.50kW0.28%4.5%2100kg1492 × 1297 × 1440mm550 × 820mm
1000kVA1.15kW10.30kW0.28%4.5%2510kg1662 × 1456 × 1437mm550 × 1070mm
1250kVA1.36kW12.00kW0.26%4.5%3120kg1750 × 1510 × 1580mm550 × 1070mm
1600kVA1.64kW14.50kW0.24%4.5%3660kg1855 × 1605 × 1610mm550 × 1070mm

S13-M.RL Series Technical Data

Rated CapacityNo-Load LossLoad LossNo-Load CurrentShort-Circuit ImpedanceWeightDimensions (L × W × H)Gauge
30kVA0.08kW0.63 / 0.60kW0.30%4.0%295kg791 × 612 × 996mm380 × 550mm
50kVA0.10kW0.91 / 0.87kW0.24%4.0%375kg926 × 648 × 1034mm380 × 550mm
63kVA0.11kW1.09 / 1.04kW0.23%4.0%435kg1010 × 672 × 1064mm380 × 550mm
80kVA0.13kW1.31 / 1.25kW0.22%4.0%485kg1027 × 677 × 1094mm380 × 550mm
100kVA0.15kW1.58 / 1.50kW0.21%4.0%510kg899 × 791 × 1114mm380 × 550mm
125kVA0.17kW1.89 / 1.80kW0.20%4.0%570kg1007 × 872 × 1144mm380 × 550mm
160kVA0.20kW2.31 / 2.20kW0.19%4.0%690kg1117 × 967 × 1164mm400 × 660mm
200kVA0.24kW2.73 / 2.60kW0.18%4.0%820kg1184 × 1025 × 1194mm400 × 660mm
250kVA0.29kW3.20 / 3.05kW0.17%4.0%980kg1241 × 1075 × 1190mm400 × 660mm
315kVA0.34kW3.83 / 3.65kW0.16%4.0%1045kg1180 × 1020 × 1250mm550 × 820mm
400kVA0.41kW4.52 / 4.30kW0.16%4.0%1295kg1333 × 1154 × 1272mm550 × 820mm
500kVA0.48kW5.41 / 5.15kW0.15%4.0%1520kg1404 × 1216 × 1368mm550 × 820mm
630kVA0.57kW6.20kW0.15%4.5%1830kg1450 × 1255 × 1350mm550 × 820mm
800kVA0.70kW7.50kW0.15%4.5%2290kg1555 × 1347 × 1426mm550 × 820mm
1000kVA0.83kW10.30kW0.14%4.5%2620kg1605 × 1422 × 1606mm550 × 1070mm
1250kVA0.97kW12.00kW0.13%4.5%3150kg1750 × 1510 × 1580mm550 × 1070mm
1600kVA1.17kW14.50kW0.12%4.5%3755kg1846 × 1599 × 1638mm550 × 1070mm

Technical Notes

  1. For transformers rated at 500kVA and below, the first listed load-loss value applies to the Dyn11 connection group, while the second value applies to the Yyn0 connection group.
  2. The dimensions shown in the tables are reference values only.
  3. Transformer installation and engineering design shall be based on the final confirmed outline drawing.
